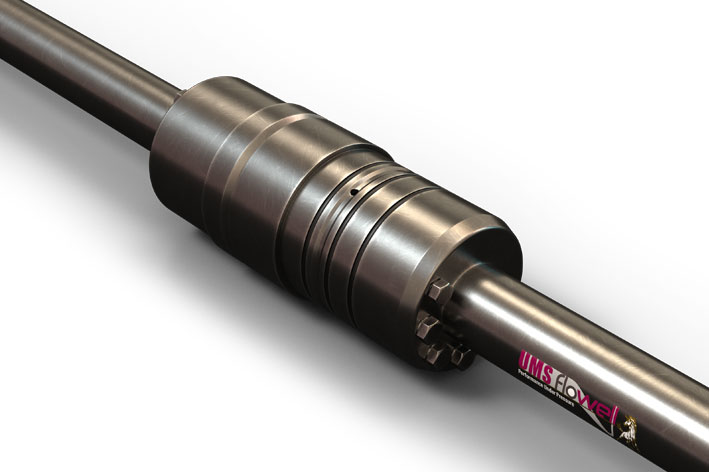

Pod Hanger Assembly

The UMS Flowell Pod Hanger Assembly is completely torqued, assembled, and pressure tested, ready to make up to the ESP and the production tubing.

The pod hanger assembly comprises of:

  • 6ft handling sub with a top connection to suit the customer’s production tubing
  • Optional nipple for testing the production tubing above the pod hanger assembly
  • 8ft pup joint above the pod hanger to allow for deflection due to the hanger offset bore. This also provides space for a packer style electrical connector
  • Pod hanger
  • 6ft pup joint below the pod hanger
  • Optional offset union to accommodate for the offset production bore due to the electrical connector penetration
  • 6ft or 15ft pup joint depending if an offset union is used
  • Crossover if required for the pump discharge head
  • Available with ISO 14310 V0 and V3 Qualification

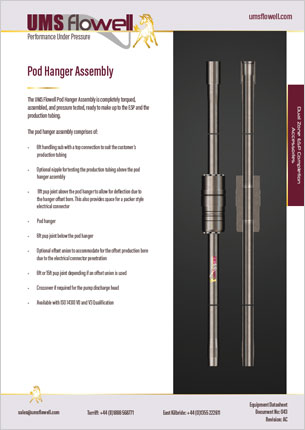

Download The Pod Hanger Assembly Datasheet PDF
