Y-Tool Sub Assembly

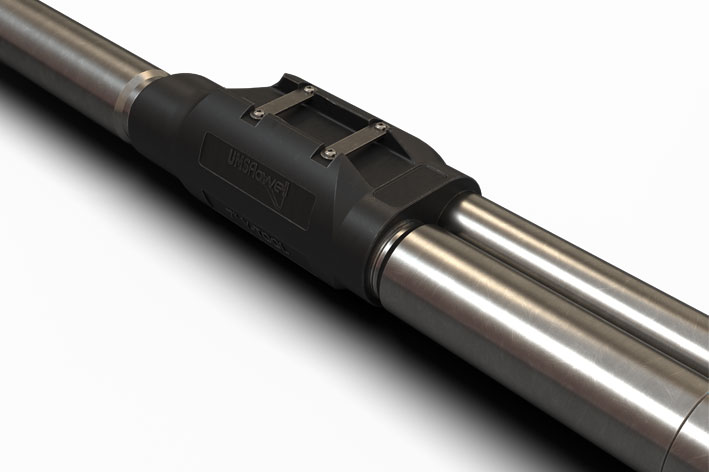

The UMS Flowell Y-Tool Sub Assembly comprises of the following items:

  • 6ft handling sub with a top connection to suit the customer’s production tubing
  • Optional top nipple used to set a plug to test the production tubing or set a packer, and used with an isolation tool to straddle the y-tool body for bullheading the well or isolating the upper ESP when running dual y-tool ESP completions
  • Y-tool used to create a junction between the bypass and the ESP discharge
  • Bypass nipple used for setting a blanking plug, wireline plug, coil tubing plug, and a lower profile for the isolation tool used in combination with the top nipple
  • Adjustable swivel with 15-inch stroke adjustment for make up to the bypass tubing
  • 10ft pump sub for make up to the ESP pump discharge head
  • Blanking plug set in the bypass nipple to prevent recirculation through the bypass tubing when running the ESP
  • Optional bypass tubing crossover for reducing bypass tubing size.

The parts are torqued, pressure tested and drifted as an assembly, ready for make up to the ESP system on the well site.

Features & Benefits

  • Fully torqued and tested
  • Full material traceability
  • Robust construction
  • Can be used for single and dual ESP logging bypass systems
  • Can also be used for systems with tailpipe below the ESP

Specifications

  • Low alloy steel or 13Cr material options to API 5CT
  • 5000psi MWP

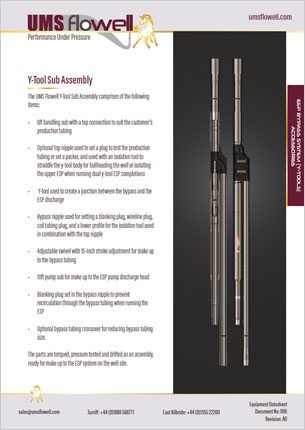

Download The Y-Tool Sub Assembly Datasheet PDF
