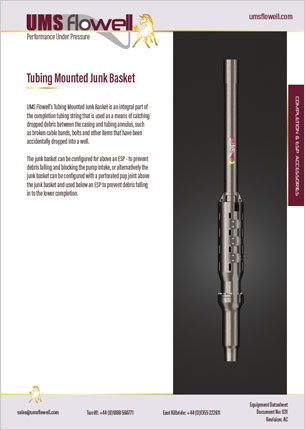

Tubing Mounted Junk Basket

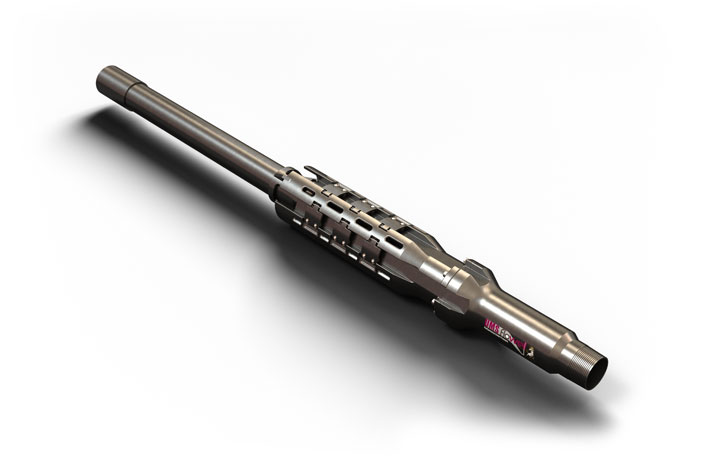

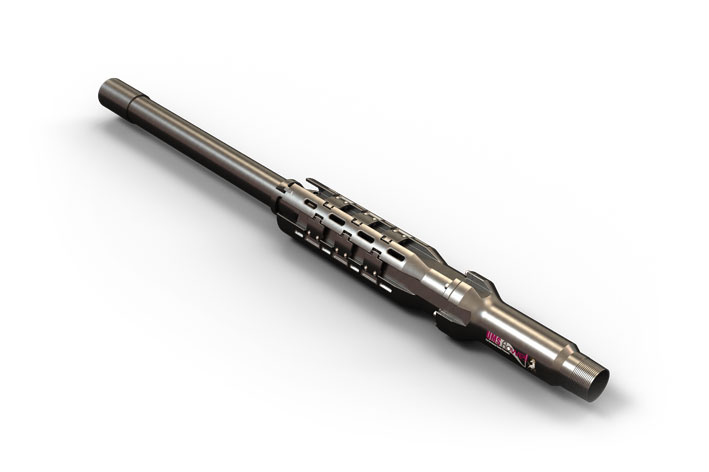

UMS Flowell’s Tubing Mounted Junk Basket is an integral part of the completion tubing string that is used as a means of catching dropped debris between the casing and tubing annulus, such as broken cable bands, bolts and other items that have been accidentally dropped into a well.
The junk basket can be configured for above an ESP – to prevent debris falling and blocking the pump intake, or alternatively the junk basket can be configured with a perforated pup joint above the junk basket and used below an ESP to prevent debris falling in to the lower completion.
Features & Benefits
- Available for 9-5/8” production casing and for 3-1/2” and 4-1/2” tubing sizes
- Two cable slots with cable retaining clips
- High powered directional magnet to collect debris inside junk basket base
- Can be used for above and below an ESP. Perforated pup joint option for below an ESP
- Top guide shoe for aiding pulling out of hole
- Box x pin thread configuration
Specifications
- Low alloy or 13Cr metallurgy
- Matched tubing strength
