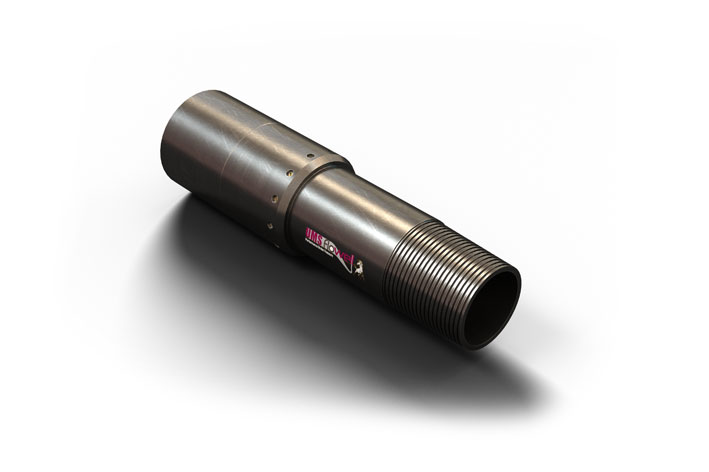

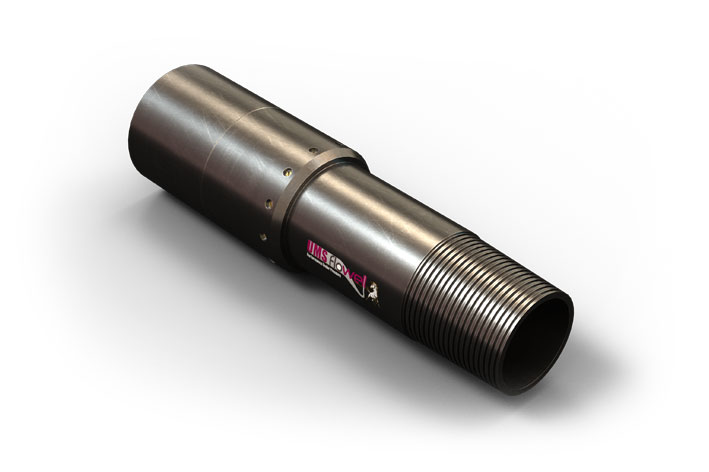

Tubing Drain Valve
(Internal Pressure Shear)
The UMS Flowell Tubing Drain Valve (Bleeder Valve) with internal pressure shear is a simple way to prevent pulling a wet string on pump completions with a check valve, or pump strings that are blocked with sand and debris.
Pressure is applied to the tubing on surface, at the pre‐determined pressure the piston is actuated and shears the screws to open communication with the annulus, allowing the tubing string to drain.
Features & Benefits
- Compact design
- Field settable to desired shear pressure
- Reliable and simple
- Full bore to match tubing
- Available in 2‐7/8” to 4‐1/2” sizes
- Available in any customer specified thread connection
Specifications
- See table on datasheet for pressure settings
- Up to 400ºF
