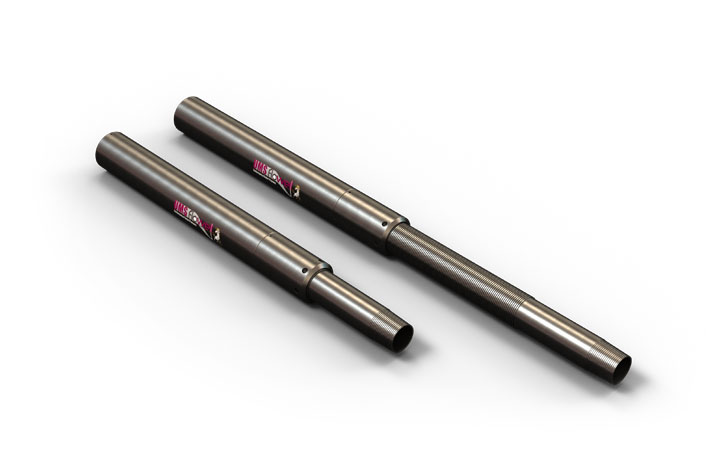

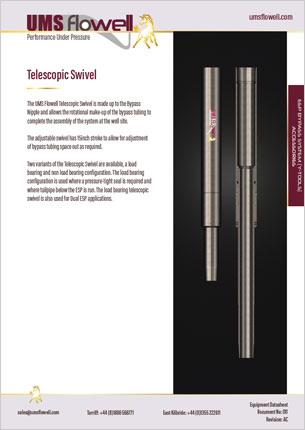

Telescopic Swivel
The UMS Flowell Telescopic Swivel is made up to the Bypass Nipple and allows the rotational make-up of the bypass tubing to complete the assembly of the system at the well site.
The adjustable swivel has 15inch stroke to allow for adjustment of bypass tubing space out as required.
Two variants of the Telescopic Swivel are available, a load bearing and non load bearing configuration. The load bearing configuration is used where a pressure-tight seal is required and where tailpipe below the ESP is run. The load bearing telescopic swivel is also used for Dual ESP applications.
Features & Benefits
- Option of load bearing version for dual completions or tailpipe below the ESP
- Designs for 9-5/8” and 7” Y-tool systems
- Reducing crossovers available for smaller bypass tubing
Specifications
- Low alloy steel or 13Cr material options
- 15” stroke
