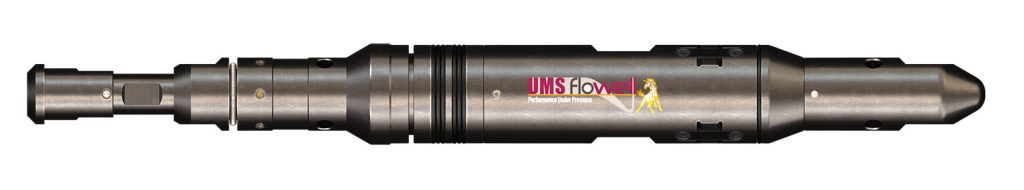

Superior Blanking Plug Type A
The UMS Flowell Superior Blanking Plugs are suitable for deploying in modified Camco Type “A” Y-tool bypass nipples which were the legacy profiles used by Phoenix Petroleum. This legacy profile continues with Zenith Oilfield and Schlumberger Y-tool products.
The UMS Flowell Superior Blanking Plug is an alternative and improved plug for the Type “A” nipple profile and provides the following features and benefits.
Features & Benefits
- Top NO-GO design
- Fluid bypass when running in hole
- Equalizing feature when pulling
- Balanced shaft design to prevent unseating with pressure below
- Simple operation (Jar down to set / Jar up to release)
- 1.875”, 2.312”, 2.625”, 2.750”, 2.812”, 2.875” for Type A Nipples
- 1.75” External Fish Neck on all Superior Blanking Plugs apart from the 1.875” Superior Blanking Plug which has a 1.375” External Fish Neck
- Locking Dog design instead of a collet lock to prevent scoring of the seal bore when pulling and setting
- Front end debris seal to clean the seal bore when running into the nipple
- Bi-Directional Seals for holding pressure from above and below
- Suitable for naturally flowing and non-flowing wells
- Retrofit for Phoenix Petroleum Type “A” nipples (Zenith Oilfield and Schlumberger Y-tool nipple profiles)
- Can be used as a barrier plug when set in a top nipple
Specifications
- 5000psi MWP from above or below
- Up to 350°F with elastomers
- Low alloy steel or 17/4 ST.ST
- Viton or Aflas seals as standard
- Non elastomeric seals available upon request
