Rotational Alignment Sub

(Metal To Metal Seal) (RAS-M)

UMS Flowell Tubing Rotation Alignment Sub with Metal to Metal seal (RAS-M) is a quick and easy way to orientate your completion.

The RAS is used to assist with the orientation of well completion assemblies within a well completion string. A typical example would be the orientation between upper and lower y-tools in dual ESP completions, or orientation below a tubing hanger.

The RAS-M can be orientated at any angular position. The wedge type metal to metal seal is energised by torqueing a locking ring which also locks the angular position to prevent back off.

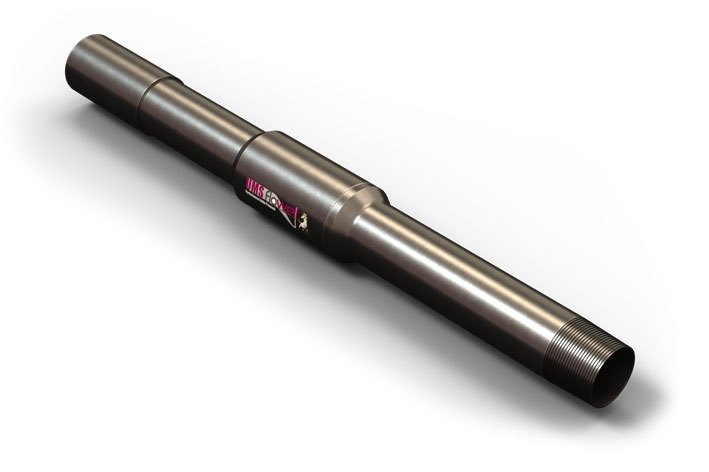

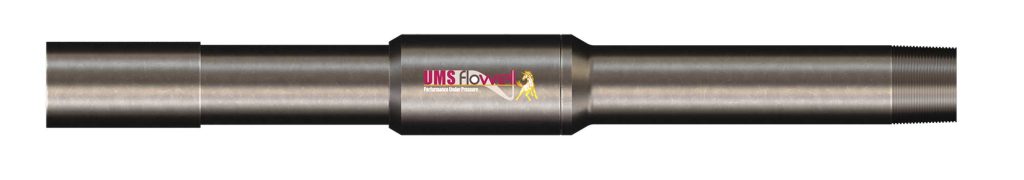

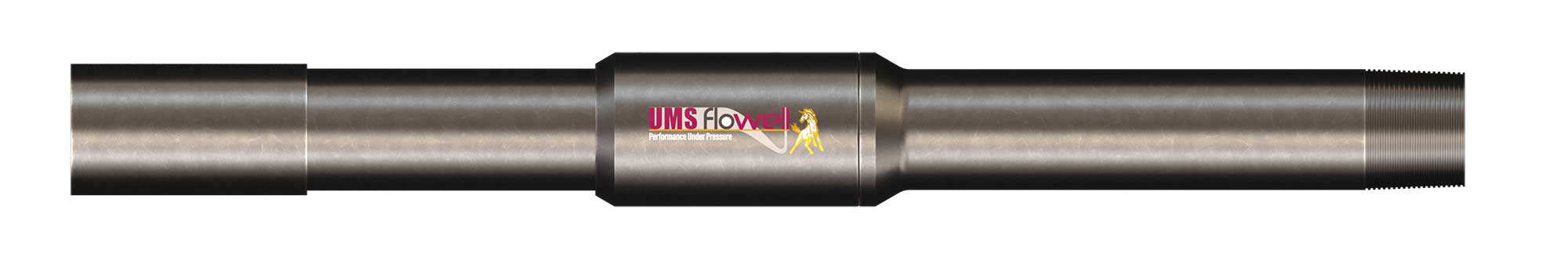

Rotational Alignment Sub - Metal To Metal Seal

Features & Benefits

  • Available in sizes from 1.900” up to 5-1/2”
  • Other sizes available on request
  • Compact design
  • Wedge type Metal to Metal Seal
  • Locked to right and left-hand rotation by torque

Specifications

  • Low alloy or 13Cr metallurgy
  • Tubing matched pressure rating and strength

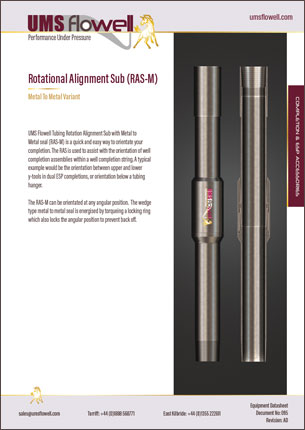

Download The Rotational Alignment Sub – Metal To Metal Seal Datasheet PDF
