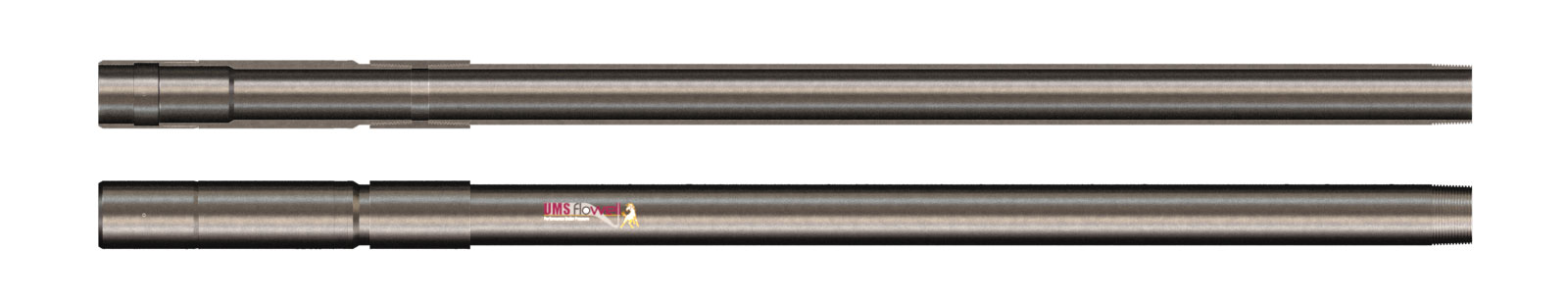

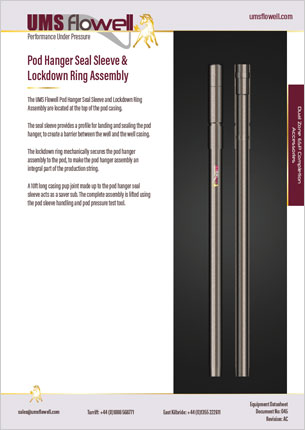

Pod Hanger Seal Sleeve & Lockdown Ring Assembly
The UMS Flowell Pod Hanger Seal Sleeve and Lockdown Ring Assembly are located at the top of the pod casing.
The seal sleeve provides a profile for landing and sealing the pod hanger, to create a barrier between the well and the well casing.
The lockdown ring mechanically secures the pod hanger assembly to the pod, to make the pod hanger assembly an integral part of the production string.
A 10ft long casing pup joint made up to the pod hanger seal sleeve acts as a saver sub. The complete assembly is lifted using the pod sleeve handling and pod pressure test tool.
Features & Benefits
- Seal profile for pod hanger
- Landing shoulder for pod hanger
- 5-1/2”, 7”, 7-5/8” and 10-3/4” pod casing sizes available
- Various Thread connections available to meet customer requirements
- Matched strength with production tubing
Specifications
- Low alloy steel or 13Cr material options
- 5000psi MWP as standard
