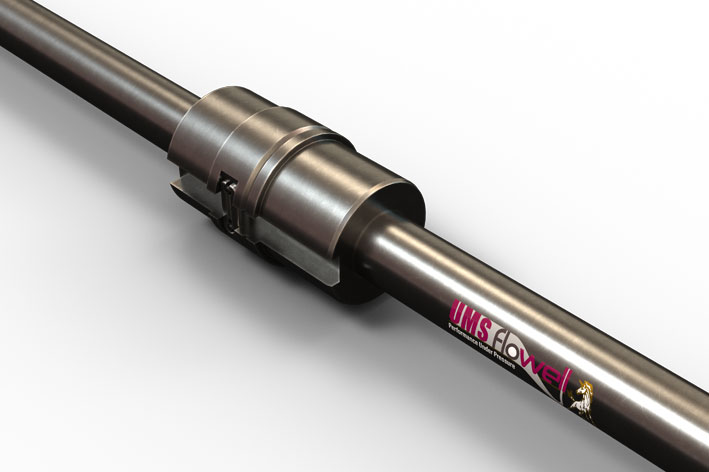

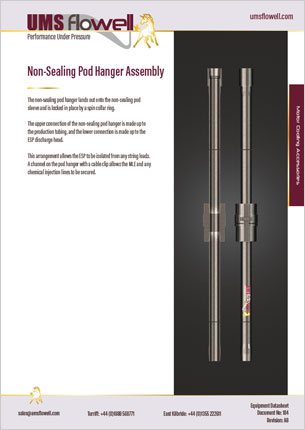

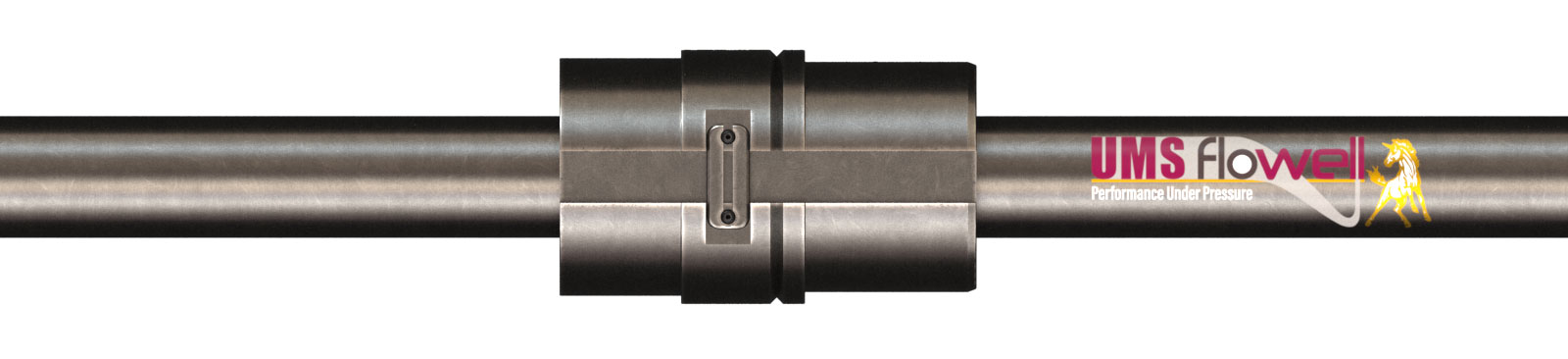

Non Sealing Pod Hanger Assembly
The non-sealing pod hanger lands out onto the non-sealing pod sleeve and is locked in place by a spin collar ring.
The upper connection of the non-sealing pod hanger is made up to the production tubing, and the lower connection is made up to the ESP discharge head.
This arrangement allows the ESP to be isolated from any string loads. A channel on the pod hanger with a cable clip allows the MLE and any chemical injection lines to be secured.
Features & Benefits
- Isolates the ESP from string loads
- Allows heavy tailpipe to be suspended below the ESP
- Cable slot for MLE and service lines
- V-shaped groove to prevent support ring back off
Specifications
- Low alloy steel or 13Cr metallurgy
- Tubing connections to match production tubing and pump discharge head
