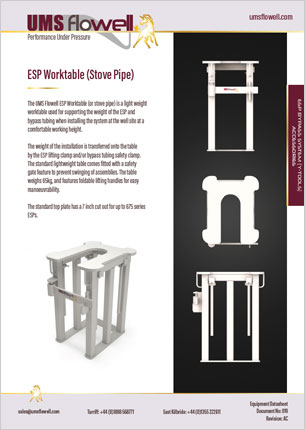

ESP Worktable - (Stove Pipe)
The UMS Flowell ESP Worktable (or stove pipe) is a light weight worktable used for supporting the weight of the ESP and bypass tubing when installing the system at the well site at a comfortable working height.
The weight of the installation is transferred onto the table by the ESP lifting clamp and/or bypass tubing safety clamp. The standard lightweight table comes fitted with a safety gate feature to prevent swinging of assemblies. The table weighs 65kg, and features foldable lifting handles for easy manoeuvrability.
The standard top plate has a 7 inch cut out for up to 675 series ESPs.
Features & Benefits
- Lightweight
- Lifting handles
- Safety gate feature
- Optional adapter plate for rotary table if required
Specifications
- 20 Ton SWL
- 7” cutout
