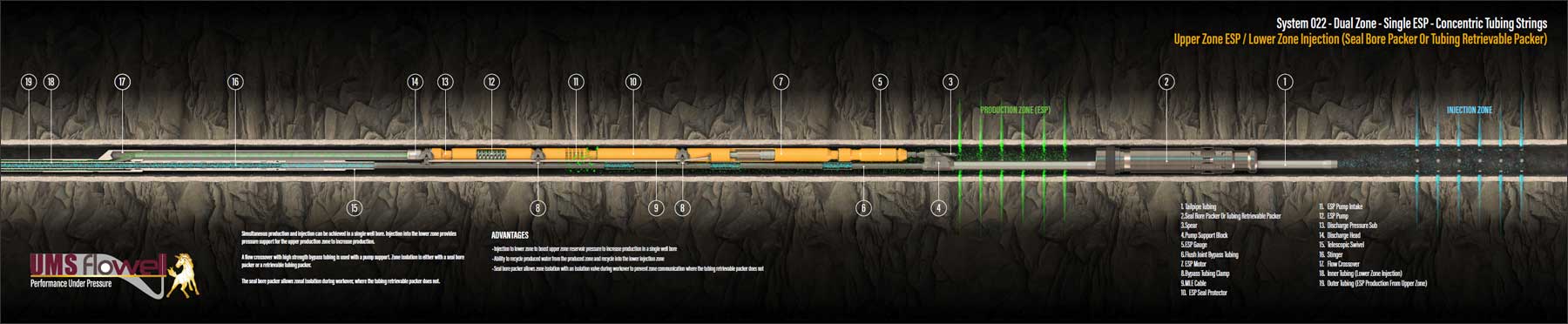

System 22: Dual Zone - Single ESP -Concentric Tubing Strings

Flow Crossover Assembly (Independent Production To Sureface)
  1. Tailpipe Tubing
  2. Seal Bore Packer Or Tubing Retrievable Packer
  3. Spear
  4. Pump Support Block
  5. ESP Gauge
  6. Flush Joint Bypass Tubing
  7. ESP Motor
  8. Bypass Tubing Clamp
  9. MLE Cable
  10. ESP Seal Protector
  11. ESP Pump Intake
  12. ESP Pump
  13. Discharge Pressure Sub
  14. Discharge Head
  15. Telescopic Swivel
  16. Stinger
  17. Flow Crossover
  18. Inner Tubing (Lower Zone Injection)
  19. Outer Tubing (ESP Production From Upper Zone)

Simultaneous production and injection can be achieved in a single well bore. Injection into the lower zone provides pressure support for the upper production zone to increase production.

A flow crossover with high strength bypass tubing is used with a pump support. Zone isolation is either with a seal bore packer or a retrievable tubing packer.

The seal bore packer allows zonal isolation during workover, where the tubing retrievable packer does not.

Pump Support For Y-Tool Applications

Advantages

  • Injection to lower zone to boost upper zone reservoir pressure to increase production in a single well bore
  • Ability to recycle produced water from the produced zone and recycle into the lower injection zone
  • Seal bore packer allows zone isolation with an isolation valve during workover to prevent zone communication where the tubing retrievable packer does not

Download the Dual Zone ESP Completions Catalogue PDF
