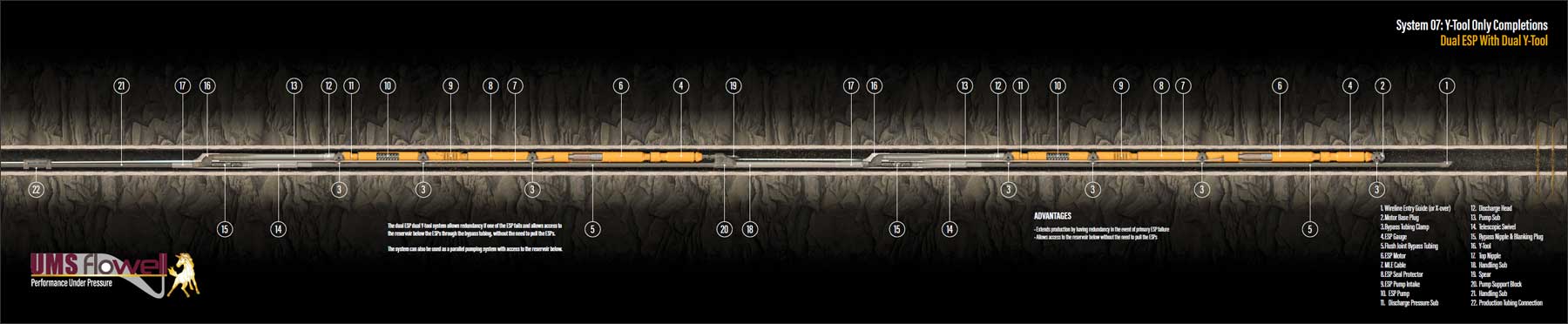

System 07: Y-Tool Completions

Y-Tool Sub Assembly (Comingled Flow)
  1. Wireline Entry Guide (or X-over)
  2. Motor Base Plug
  3. Bypass Tubing Clamp
  4. ESP Gauge
  5. Flush Joint Bypass Tubing
  6. ESP Motor
  7. MLE Cable
  8. ESP Seal Protector
  9. ESP Pump Intake
  10. ESP Pump
  11. Discharge Pressure Sub
  12. Discharge Head
  13. Pump Sub
  14. Telescopic Swivel
  15. Bypass Nipple & Blanking Plug
  16. Y-Tool
  17. Top Nipple
  18. Handling Sub
  19. Spear
  20. Pump Support Block
  21. Handling Sub
  22. Production Tubing Connection

The dual ESP dual Y-tool system allows redundancy if one of the ESP fails and allows access to the reservoir below the ESPs through the bypass tubing, without the need to pull the ESPs.

The system can also be used as a parallel pumping system with access to the reservoir below.

Motor Base Plug

Advantages

  • Extends production by having redundancy in the event of primary ESP failure
  • Allows access to the reservoir below without the need to pull the ESPs
