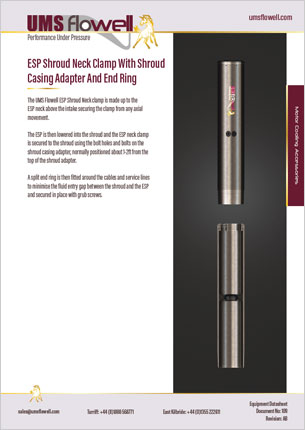

ESP Shroud Neck Clamp With Shroud Casing Adapter And End Ring

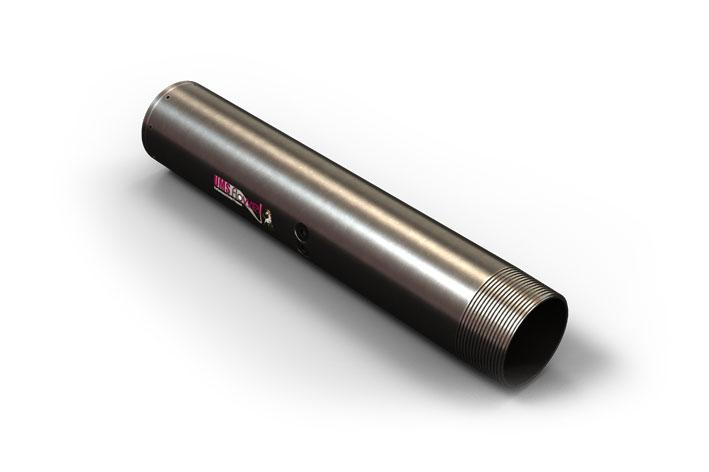

The UMS Flowell ESP Shroud Neck clamp is made up to the ESP neck above the intake securing the clamp from any axial movement.
A split end ring is then fitted around the cables and service lines to minimise the fluid entry gap between the shroud and the ESP and secured in place with grub screws.
The Check valve is normally positioned above the pump and combined with a bleeder valve (tubing drain), to prevent pulling a wet string during the pump workover.
Features & Benefits
- Fits to the ESP neck to prevent axial movement
- Slim design
Specifications
- To suit ESP
- Low alloy steel or 13Cr metallurgy with Inconel 718 bolts for strength
