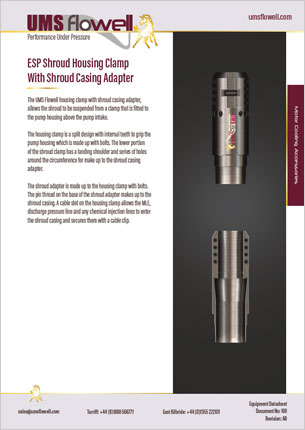

ESP Shroud Housing Clamp With Shroud Casing Adapter

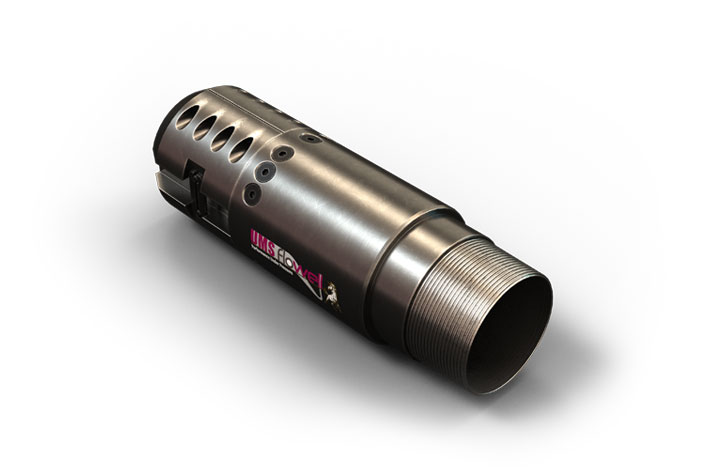

The UMS Flowell housing clamp with shroud casing adapter, allows the shroud to be suspended from a clamp that is fitted to the pump housing above the pump intake.
The housing clamp is a split design with internal teeth to grip the pump housing which is made up with bolts. The lower portion of the shroud clamp has a landing shoulder and series of holes around the circumference for make up to the shroud casing adapter.
The shroud adapter is made up to the housing clamp with bolts. The pin thread on the base of the shroud adapter makes up to the shroud casing. A cable slot on the housing clamp allows the MLE, discharge pressure line and any chemical injection lines to enter the shroud casing and secures them with a cable clip.
Features & Benefits
- Fits to the ESP housing
- Grip feature to prevent slippage and rotation
- Position can be altered to suit operation
Specifications
- To suit ESP
- Low alloy steel or 13Cr metallurgy with Inconel 718 bolts for strength
