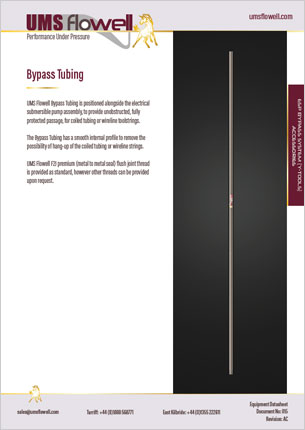

Bypass Tubing

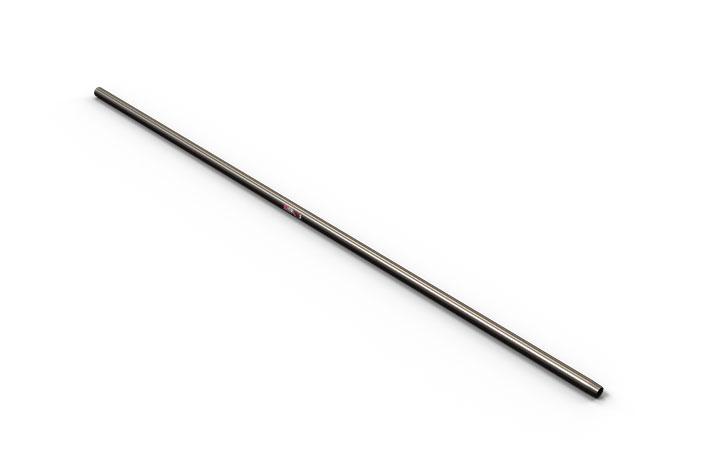

UMS Flowell Bypass Tubing is positioned alongside the electrical submersible pump assembly, to provide unobstructed, fully protected passage, for coiled tubing or wireline toolstrings.
The Bypass Tubing has a smooth internal profile to remove the possibility of hang-up of the coiled tubing or wireline strings.
UMS Flowell F2J premium (metal to metal seal) flush joint thread is provided as standard, however other threads can be provided upon request.
Features & Benefits
- Box x Pin thread
- Other threads available on request
- 15ft standard length, other lengths available
- No coupling- Flush outside diameter to maximize space
Specifications
- Low alloy steel or 13Cr material options to API 5CT
- 5000psi MWP
- 2-1/8” OD tubing offered in carbon steel and 316 stainless steel materials
