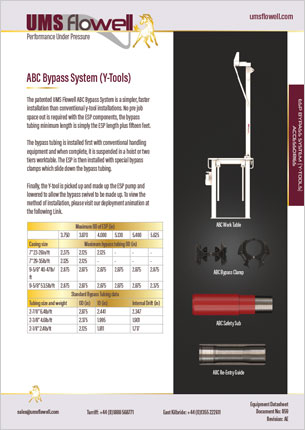

ABC Bypass System (Y-Tools)
UK Patent No. GB2590029
The patented UMS Flowell ABC Bypass System is a simpler, faster installation than conventional y‐tool installations. No pre job space out is required with the ESP components, the bypass tubing minimum length is simply the ESP length plus fifteen feet.
The bypass tubing is installed first with conventional handling equipment and when complete, it is suspended in a hoist or two tiers worktable. The ESP is then installed with special bypass clamps which slide down the bypass tubing.
Finally, the Y‐tool is picked up and made up the ESP pump and lowered to allow the bypass swivel to be made up.
System Requirements
- Standard Y‐tool assembly with either telescopic or non‐telescopic swivel
- Flush Joint Bypass Tubing (15ft or 30ft)
- Bell Type Wireline Entry Guide instead of a half mule shoe
- Wireline Entry Guide
- Special Bypass Tubing Clamps (no grip on the bypass tubing)
- Special Motor Base Plug for clamping the ESP motor or ESP gauge base to the bypass tubing
- Optional Special Two‐Tier Worktable
- Handling equipment comprised of a Worktable, Safety Clamp and Swivel Lift Nubbin for handling the bypass tubing
- Conventional service tools as the standard Y‐tool system (standing valve, isolation tool, wireline logging plug, coil tubing logging plug)
