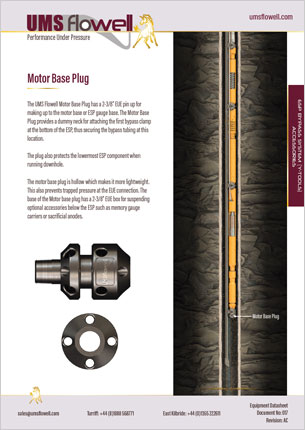

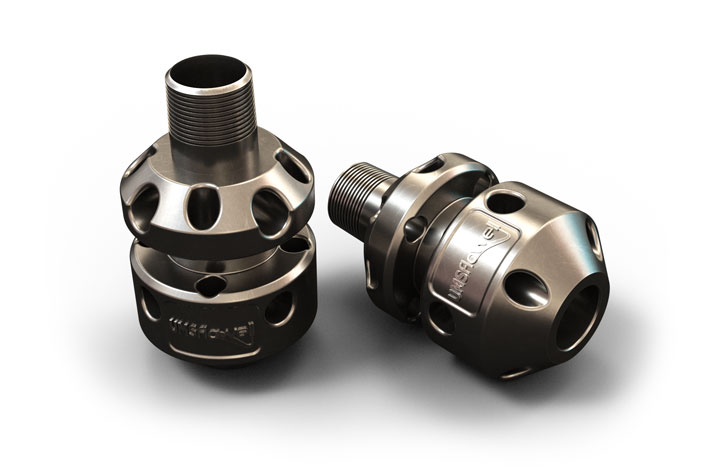

Motor Base Plug
The UMS Flowell Motor Base Plug has a 2-3/8” EUE pin up for making up to the motor base or ESP gauge base. The Motor Base Plug provides a dummy neck for attaching the first bypass clamp at the bottom of the ESP, thus securing the bypass tubing at this location. The plug also protects the lowermost ESP component when running downhole.
The motor base plug is hollow which makes it more lightweight. This also prevents trapped pressure at the EUE connection. The base of the Motor base plug has a 2-3/8” EUE box for suspending optional accessories below the ESP such as memory gauge carriers or sacrificial anodes.
Features & Benefits
- Hollow lightweight design that prevents trapped pressure in the threads
- 2-3/8” API EUE Pin x Box design
- Compact design
- Precision Investment Casting
Specifications
- Low alloy steel or 13Cr material options
- OD to suit ESP
